| Display & Environmental | ||
|---|---|---|
| Display & Environmental |

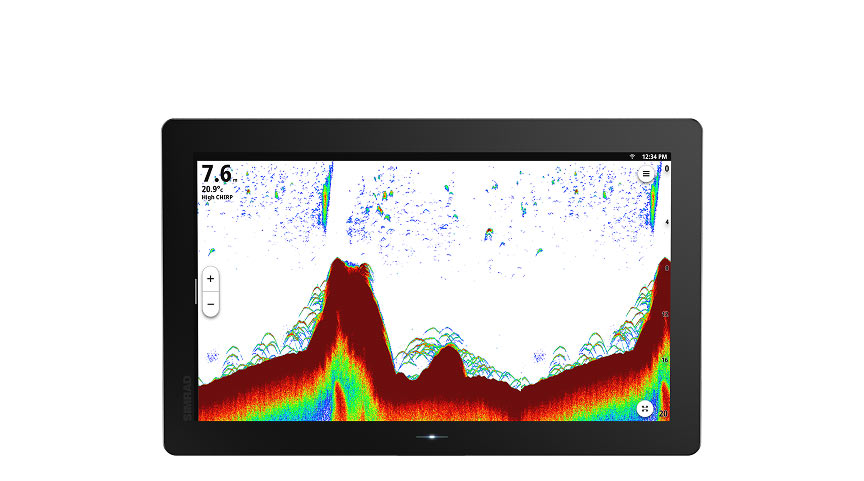

Resolution 1920 x 1080 px Display Size 16 inches Touchscreen IPS, Full Touchscreen (Multi-Touch) Brightness 1200 Nits Typical |
Viewing Angles 80° top/bottom, 80° left/right Operating Temperature -15°C to 55°C (5°F to 131°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) |
| Power & Protection | ||
| Power & Protection |
Voltage 12/24V Protection Reverse polarity and over-voltage (max 32V) |
Galvanic Isolation Yes |
| Connectivity & Interfaces | ||
| Connectivity & Interfaces |
MI10 Support Yes (Adaptor Required*) USB Touch Support Yes WiFi WiFi 5, 5.0 and 2.4GHz Compatible GPS External Antenna Required (NMEA2000) Ethernet 4 x GbE 1000/s |
Video In Yes Video Out Yes Audio Input Via Video In Audio Output Selectable: Video Out or USB NMEA Support NMEA 2000 Only, 0183 via adaptor
|
|
||
|
|
|
| Performance & Storage | ||
| Performance & Storage |
Internal Memory 128GB, 83GB User Data External SD Dual up to 256GB |
Card Format FAT® 32, ExFAT® or NTFS® MI10 Support Yes (Adaptor Required*) |
| Product Dimensions | ||
| Product Dimensions |
Dimensions (mm) 391 x 244 mm Dimensions (inches) 15.4 x 9.6 in Product Weight 4.23 kg |
Package Dimensions 490 × 350 × 210 mm Package Weight 6.34 kg |
| Installation Specifications | ||
| Installation Specifications |
Minimum spacing between cutouts: 16” display: 16.3 mm (0.645”) 22” / 24” displays: 16.5 mm (0.663”) |
|
NSO® 4
See prices and options| Integration | |
|---|---|
| Integration |
Sonar Supported sonar types and modules:
Radar Supports:
Video & Cameras Core supported features:
Supported camera types:
Autopilot Supported autopilot components:
Engine Integration Supported manufacturers:
Trolling Motors & Shallow Water Anchors Supported via brand-specific gateways:
Simrad® VHF and AIS Systems
|
 |
||
| Display & Environmental | ||
|---|---|---|
| Display & Environmental |

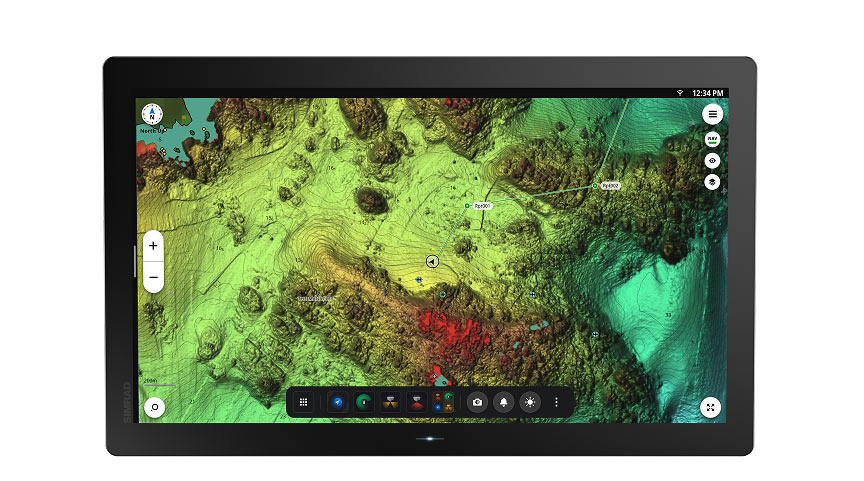

Resolution 1920 x 1080 px Display Size 22 inches Touchscreen IPS, Full Touchscreen (Multi-Touch) Brightness 1200 Nits Typical |
Viewing Angles 80° top/bottom, 80° left/right Operating Temperature -15°C to 55°C (5°F to 131°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) |
| Power & Protection | ||
| Power & Protection |
Voltage 12/24V Protection Reverse polarity and over-voltage (max 32V) |
Galvanic Isolation Yes |
| Connectivity & Interfaces | ||
| Connectivity & Interfaces |
MI10 Support Yes (Adaptor Required*) USB Touch Support Yes WiFi WiFi 5, 5.0 and 2.4GHz Compatible GPS External Antenna Required (NMEA2000) Ethernet 4 x GbE 1000/s |
Video In Yes Video Out Yes Audio Input Via Video In Audio Output Selectable: Video Out or USB NMEA Support NMEA 2000 Only, 0183 via adaptor
|
|
|
||
|
|
|
| Performance & Storage | ||
| Performance & Storage |
Internal Memory 128GB, 83GB User Data External SD Dual up to 256GB |
Card Format FAT® 32, ExFAT® or NTFS® MI10 Support Yes (Adaptor Required*) |
| Product Dimensions | ||
| Product Dimensions |
Dimensions (mm) 523 x 321 mm Dimensions (inches) 20.6 x 12.6 in Product Weight 5.76 kg |
Package Dimensions 630 × 430 × 210 mm Package Weight 8.38 kg |
| Installation Specifications | ||
| Installation Specifications |
Minimum spacing between cutouts: 16” display: 16.3 mm (0.645”) 22” / 24” displays: 16.5 mm (0.663”) |
|
| Integration | |
|---|---|
| Integration |
Sonar Supported sonar types and modules:
Radar Supports:
Video & Cameras Core supported features:
Supported camera types:
Autopilot Supported autopilot components:
Engine Integration Supported manufacturers:
Trolling Motors & Shallow Water Anchors Supported via brand-specific gateways:
Simrad® VHF and AIS Systems
|
 |
||
| Display & Environmental | ||
|---|---|---|
| Display & Environmental |

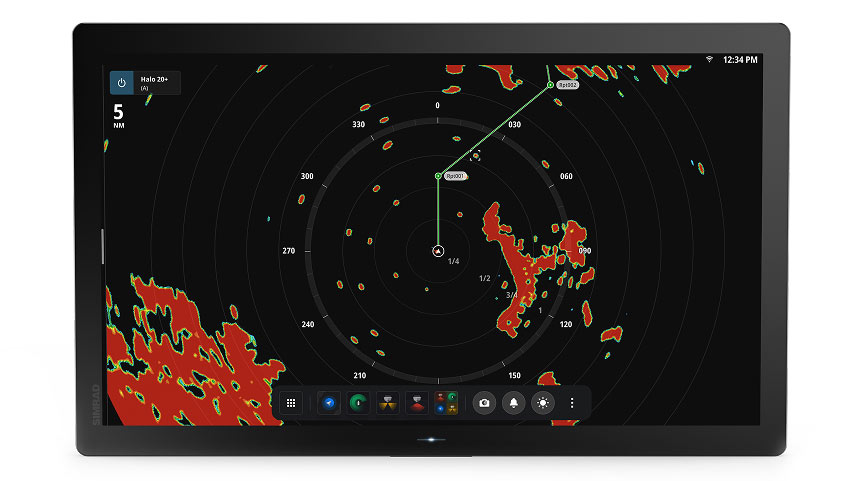

Resolution 1920 x 1080 px Display Size 24 inches Touchscreen IPS, Full Touchscreen (Multi-Touch) Brightness 1200 Nits Typical |
Viewing Angles 80° top/bottom, 80° left/right Operating Temperature -15°C to 55°C (5°F to 131°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) |
| Power & Protection | ||
| Power & Protection |
Voltage 12/24V Protection Reverse polarity and over-voltage (max 32V) |
Galvanic Isolation Yes |
| Connectivity & Interfaces | ||
| Connectivity & Interfaces |
MI10 Support Yes (Adaptor Required*) USB Touch Support Yes WiFi WiFi 5, 5.0 and 2.4GHz Compatible GPS External Antenna Required (NMEA2000) Ethernet 4 x GbE 1000/s |
Video In Yes Video Out Yes Audio Input Via Video In Audio Output Selectable: Video Out or USB NMEA Support NMEA 2000 Only, 0183 via adaptor
|
|
|
||
|
|
|
| Performance & Storage | ||
| Performance & Storage |
Internal Memory 128GB, 83GB User Data External SD Dual up to 256GB |
Card Format FAT® 32, ExFAT® or NTFS® MI10 Support Yes (Adaptor Required*) |
| Product Dimensions | ||
| Product Dimensions |
Dimensions (mm) 572 x 347 mm Dimensions (inches) 20.7 x 13.7 in Product Weight 7.35 kg |
Package Dimensions 680 × 450 × 210 mm Package Weight 10.3 kg |
| Installation Specifications | ||
| Installation Specifications |
Minimum spacing between cutouts: 16” display: 16.3 mm (0.645”) 22” / 24” displays: 16.5 mm (0.663”) |
|
| Integration | |
|---|---|
| Integration |
Sonar Supported sonar types and modules:
Radar Supports:
Video & Cameras Core supported features:
Supported camera types:
Autopilot Supported autopilot components:
Engine Integration Supported manufacturers:
Trolling Motors & Shallow Water Anchors Supported via brand-specific gateways:
Simrad® VHF and AIS Systems
|
