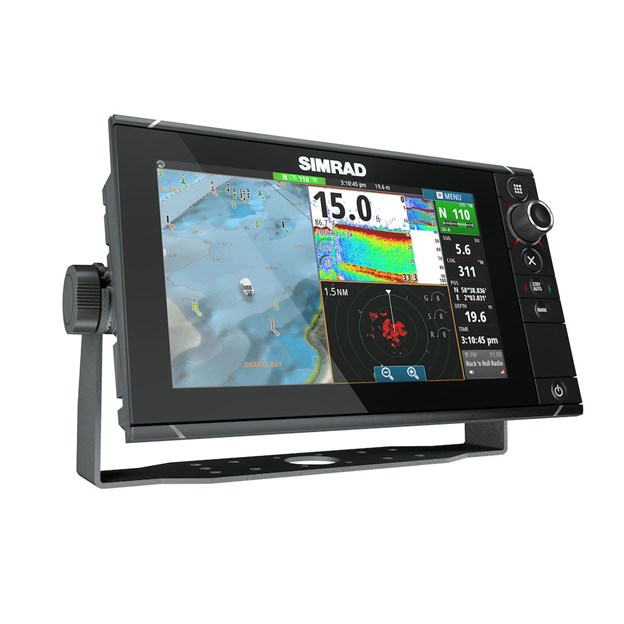

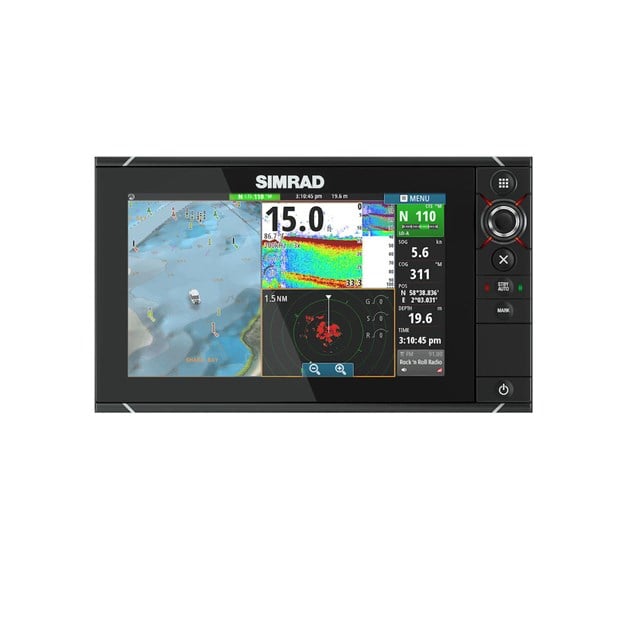

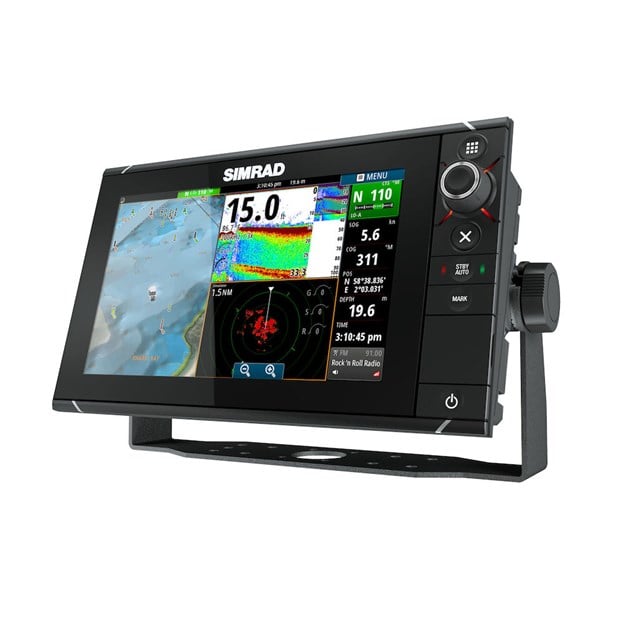

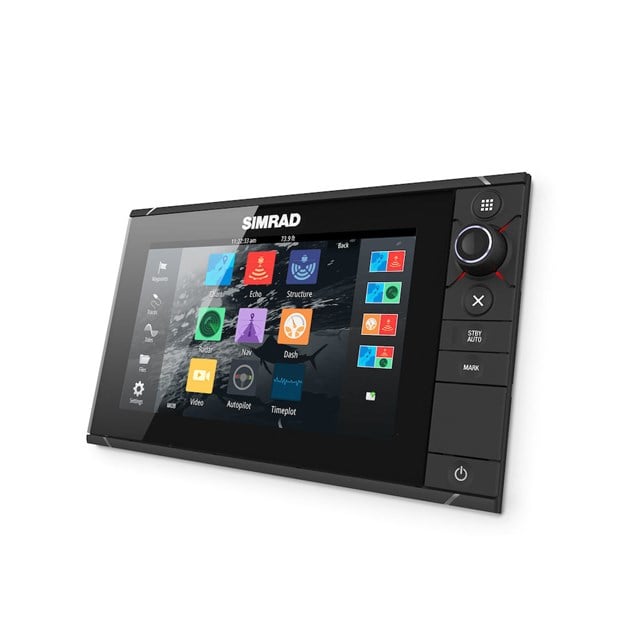

NSS9 EVO2 COMBO MFD, WORLD BASEMAP

Características técnicas

Pantalla

Ángulos de visión

50° top / 60° bottom, 70° left/right

Brillo de la pantalla

1200 nits

Color de la retroiluminación

White

Resolución de la pantalla

480 x 800, WVGA, 15:9

Características físicas

Dimensiones An. x Al. x Pr.

280 x 164 x 107 mm (11 x 6.5 x 4.2")

Peso

1.507 kg (3.32 lbs.)

Tipo de montaje

Bracket (Supplied) , panel, flush

Eléctrico

Capacidad recomendada de los fusibles

5A

Consumo energético máximo

12W

Consumo energético mínimo

4W

Consumo energético típico

10W

Tensión de alimentación

9 - 31.2 V DC

Ambiente

Grado de impermeabilidad

IPX6 and 7

Rango de temperatura de almacenamiento

"-20°C to +60°C (4°F to 140°F)

Rango de temperaturas de funcionamiento

-15°C to +55°C (5° F to 131° F)

Conectividad

Almacenamiento de tarjetas SD

2 MicroSD slots, max. 32GB each

Bluetooth

No

Conectividad NMEA 2000

1 x NMEA 2000 Micro-C port, 1 LEN

Conectividad para PC

No

PGN de NMEA 2000

Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration

Puertos Ethernet

1 x 5 pin yellow connector x 1 Mbit, max 6 processors on network

Sentencias de NMEA 0183 compatibles

Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM

Vídeo

2 x composite (RCA connectors) inputs. Optional video/ data cable required (P/N 000-00129-001). PAL or NTSC

W- Fi para conectividad con los artículos

Compatible with WIFI-1 external module

Multifunción

AIS

Receive AIS data over NMEA 2000 or *NMEA 0183 (has to be wired to all NSS processors)

Almacenamiento interno

90 MB

Cartografía incluida

World base map

Compatibilidad con sondas

Integrated CHIRP downscan and StructureScan/ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, BSM1 network echo sounders

Conmutación digital

BEP C-Zone

GPS

Internal, 10Hz, WASS, MSAS, EGNOS

Meteorología

SiriusXM via WM-3 (USA only), GRIB

Multimedia

via SonicHub, SonicHub2, FusionLink, *Sirius (*USA only)

Piloto automático

Full auto pilot control and commissioning

Waypoints, rutas, tracks

6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

GPS

Canales de receptor GPS

32 Channels

Corrección

WASS, EGNOS, MSAS

Frecuencia de actualización

10 Hz

Precisión de posición

Horizontal Accuracy 3 m (9.8 ft)

Tiempo hasta la primera reparación

Cold start 50 sec, Satellite Reacquisition 5 sec

Piloto Automático

Modos de gobierno

Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)

Patrones de giro de las maniobras

U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking

Aprobaciones

Cumplimiento con la homologación

CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Otros

Idiomas

Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

Interfaz

Touch Sensible combination of multi-touch screen and keypad/rotary, OP40, OP50

Periodo de garantía

2 Years
