规格

显示

背景灯颜色

White

屏幕尺寸

22 inches

屏幕亮度

1200 nits

视角

80° top / bottom, 80° left / right. (typical values at contrast ratio = 10)

显示分辨率

1920 x 1080 px

基本信息

尺寸W x H x D

523 mm (20.6 in) x 321 mm (12.6 in) x 79 mm (3.11 in)

罗经保护罩

65 cm (2.13 ft) No Suncover

重量

5.76 Kg (12.7 lbs)

电力

电源电压

12/24 V DC (10 - 31.2 V DC min - max)

建议的保险丝额定值

5 A

最大能量功耗

52 W

环境

储存温度范围

-20°C to 60°C (-4°F to 140°F)

防水等级

IPX6 and IPX7

工作温度范围

-15°C to 55°C (5°F to 131°F)

连通性

N2K PG Ns

Receive only59392 ISO Acknowledgement59904 ISO Request60160 ISO Transport Protocol, Data Transfer60416 ISO Transport Protocol, Connection M.65240 ISO Commanded Address60928 ISO Address Claim126208 ISO Command Group Function126992 System Time126996 Product Info126998 Configuration Information127233 Man Overboard Notification (MOB)127237 Heading/Track Control127245 Rudder127250 Vessel Heading127251 Rate of Turn127252 Heave127257 Attitude127258 Magnetic Variation127488 Engine Parameters, Rapid Update127489 Engine Parameters, Dynamic127493 Transmission Parameters, Dynamic127500 Load Controller Connection State / Control127501 Binary Status Report127503 AC input status127504 AC Output Status127505 Fluid Level127506 DC Detailed Status127507 Charger Status127508 Battery Status127509 Inverter Status128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129033 Time & Date129038 AIS Class A Position Report129039 AIS Class B Position Report129040 AIS Class B Extended Position Report129041 AIS aids to Navigation129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 AIS Class B Extended Position Report129545 GNSS RAIM Output129549 DGNSS Corrections129551 GNSS Differential Correction Receiver Signal129793 AIS UTC and Date Report129794 AIS aids to Navigation129798 AIS SAR Aircraft Position Report129801 Cross Track Error129802 AIS Safety Related Broadcast Message129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 GNSS Sats in View129794 AIS Class A Static and Voyage Related Data129801 AIS Addressed Safety Related Message129802 AIS Safety Related Broadcast Message129808 DSC Call Information129809 AIS Class B “CS” Static Data Report, Part A129810 AIS Class B “CS” Static Data Report, Part B130060 Label130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130313 Humidity130314 Actual Pressure130316 Temperature, Extended Range130569 Entertainment - Current File and Status130570 Entertainment - Library Data File130571 Entertainment - Library Data Group130572 Entertainment - Library Data Search130573 Entertainment - Supported Source Data130574 Entertainment - Supported Zone Data130576 Small Craft Status130577 Direction Data130578 Vessel Speed Components130579 Entertainment - System Configuration Status130580 Entertainment - System Configuration Status130581 Entertainment - Zone Configuration Status130582 Entertainment - Zone Volume Status130583 Entertainment - Available Audio EQ Presets130584 Entertainment - Bluetooth Devices130585 Entertainment - Bluetooth Source StatusTransmit60160 ISO Transport Protocol, Data Transfer60416 ISO Transport Protocol, Connection M.126208 ISO Command Group Function126992 System Time126993 Heartbeat126996 Product Info127237 Heading/Track Control127250 Vessel Heading127258 Magnetic Variation127502 Switch Bank Control128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129283 Cross Track Error129285 Navigation - Route/WP Information129284 Navigation Data129285 Route/Waypoint Data129539 GNSS DOPs129540 GNSS Sats in View130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130577 Direction Data130578 Vessel Speed Components

SD卡内存

2x microSD®, Class 10 or higher. Up to 256GB, 1 x USB port. Formats: FAT 32, EXT4, ExFAT or NTFS

联通PC

No

链接NMEA 2000

1 x NMEA 2000® Micro-C port, 1 LEN

视频

Video In port (up to 1920 x 1080P), Video out port (up to 1920 x 1080P). Video limited distribution to other NSO® 4 units via Ethernet. Cameras: IPCAM-1, FLIR® 232/300 series. ONVIF IP Cameras

项目连接 Wi Fi

WIFI 5, 5.0 and 2.4GHz Compatible

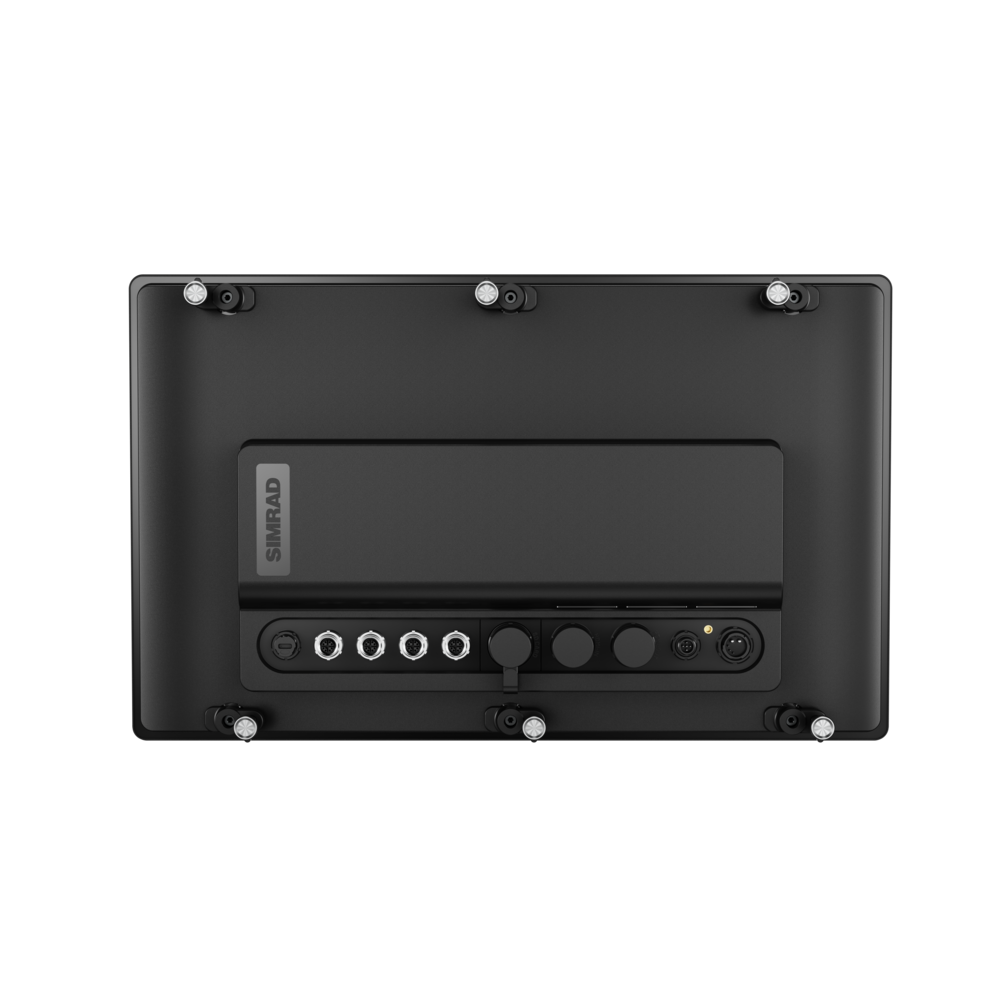

以太网端口

4 ports (X-Coded M12 GbE)

多功能显示器

AIS

Receive AIS data over NMEA 2000®

GPS

External GPS antenna required

多媒体

Via Video In port

兼容声纳

Network Sonar modules S3100, S5100. Transducers connected to NSS 4, NSX over Ethernet

路标，路线，追踪

10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network

内存

128 GB, > 64 GB User Data

天气

Sirius XM via WM4 module, FishCast® powered by ROFFS ® (USA only)

已包括海图

World wide basemap (not for navigation).Detailed chart card required

自动舵

NAC-1, NAC-2, NAC3, NAC-D

自动驾驶

机动转弯模式

U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth

转向模式

Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav

绘图

海图类型

C-MAP Tile (CMT) Discover X, Reveal XC-MAP Tile (CMT) Reveal X

海图支持

C-MAP Discover™ X, C-MAP Reveal™ X. Third party charts CMOR, StikeLines (check with provider for available content)

其它

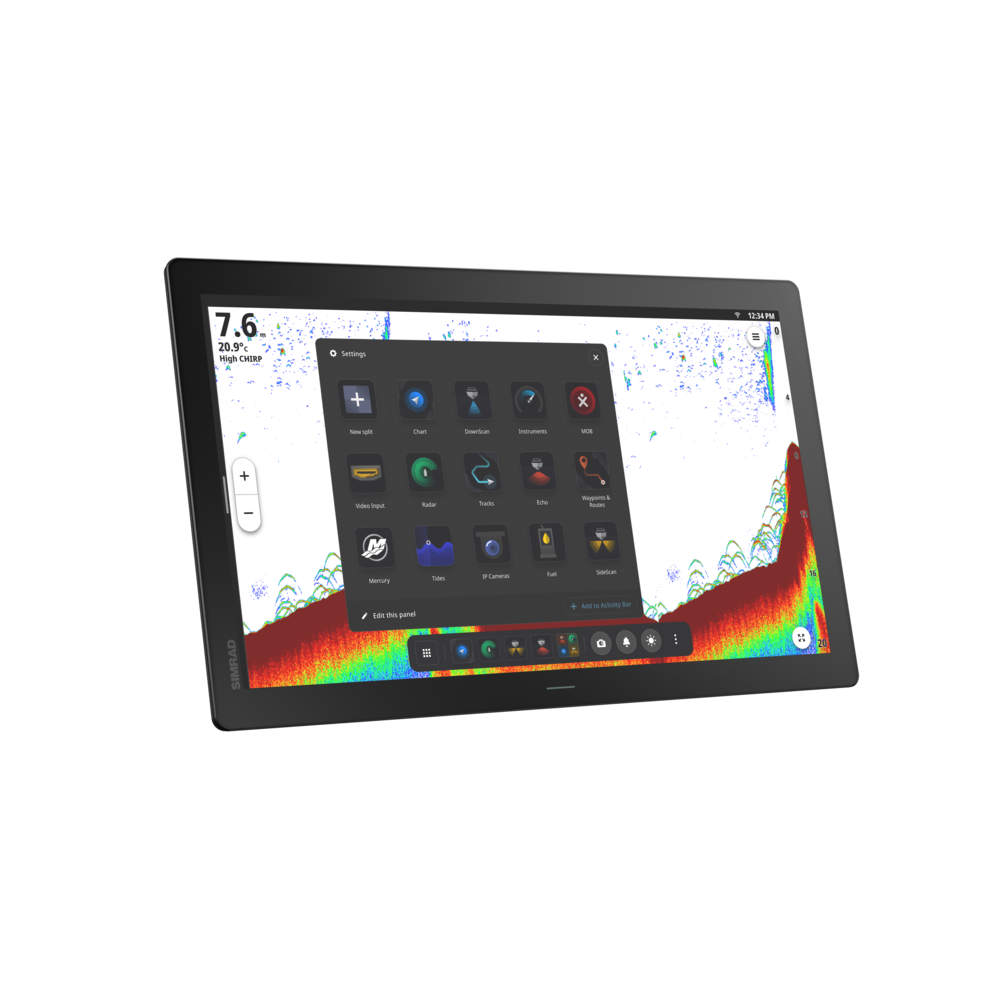

界面

Full touchscreen, Optional keypad (OP55 wired controller)

语言

-Afrikaans-Bulgarian-Chinese (中文)-Chinese Simplified (中文)-Croatian (Hrvatski)-Czech-Danish (Dansk)-Dutch (Nederlands)-English (English)-Estonian (Eesti)-Finnish (Suomi )-French (Français)-German (Deutsch)-Greek (ελληνικά)-Hungarian-Icelandic (Islenska)-Italian (Italiano)-Japanese (日本語)-Korean (한국어)-Latvian (Latviešu )-Lithuanian (Lietuvių)-Malay-Norwegian (Norsk)-Polish (Polski)-Portuguese (Português)-Russian-Slovak-Spanish (Español)-Swedish (Svenska)-Thai-Turkish (Türkçe)-Ukrainian

质保期

2 Years
