NSS9 evo3 with world basemap

SKU: 000-13238-001

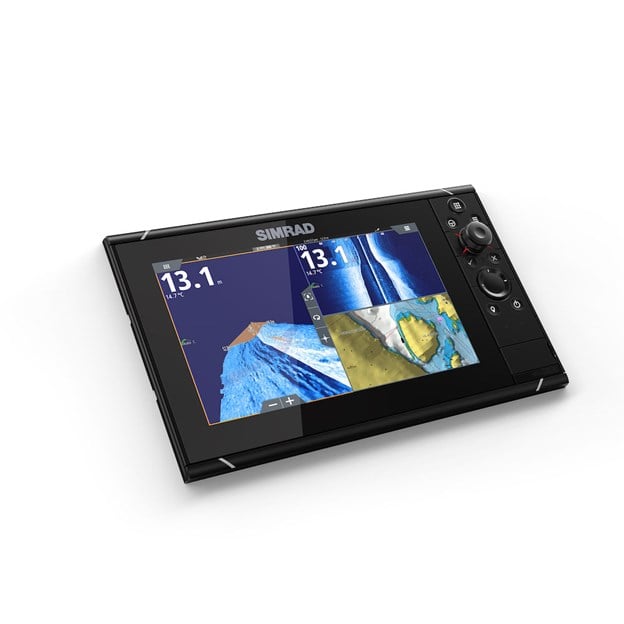

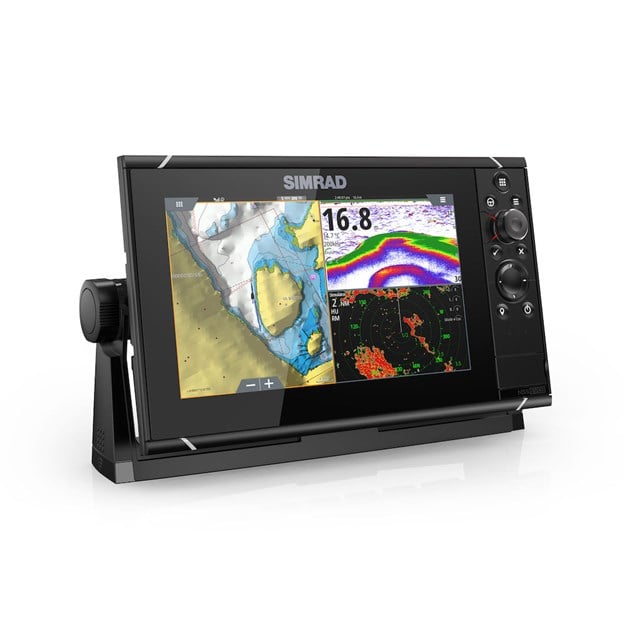

This high-definition 9-inch touchscreen offers GPS, echosounder, and wireless connectivity in a compact package that’s perfect for center consoles and other powerboats. Take control of charting, radar, sonar and more from a single display, or network multiple displays from throughout the NSS evo3 family to create your perfect system.
x

The available screen sizes for the NSS evo3 range

x

Choose a radar for your NSS evo3

£2,398.99

Make the most of your boat

Navigate, find fish, and take total control of your on-water experience with NSS evo3. SolarMAX™ IPS displays  offer exceptional clarity and ultra-wide viewing angles, even in direct sunlight, while an intuitive all-weather touchscreen and a keypad with rotary dial offer total control in any conditions. Built-in echosounder support lets you cruise confidently with ForwardScan sonar, or reveal the ultimate fishing spots with Active Imaging 3-in-1 with CHIRP, SideScan and DownScan Imaging™. Register your chartplotter, get faster technical support, download software updates and connect NSS evo3 to your smartphone or tablet with integrated wireless connectivity.


Touchscreen plus keypad for intuitive and reliable control

NSS evo3 displays let you take control your way. Switch seamlessly between intuitive touchscreen control with multi-touch gestures, perfect for cruising on a flat day, and a built-in keypad with rotary control dial for fishing and boating adventures. Control every display function by either touch or keypad, giving you total flexibility to use whatever controls best suit the situation.




Chartplotter with built-in GPS makes navigation easy

Compatible with a wide range of optional charts, NSS evo3 allows you to find the best coverage for your favorite boating locations, anywhere in the world. C-MAP Easy Routing makes plotting a route to your destination as simple as in-car navigation.


SolarMAX™ IPS displays ensure clear views in any conditions

Get a clear view under any lighting conditions with SolarMAX™ IPS   technology, which keeps everything in view with ultra-wide viewing angles – visible even through polarized sunglasses. These all-weather screens have been engineered to withstand the heat of the summer sun, and are optically bonded to prevent condensation or fogging within the display. It’s easy to monitor and control all of your on-board electronics with simple menus and customizable split-screen layouts.

Simple networking connects you to a wide range of accessories

Industry-standard connectivity makes it easy to create multi-display systems and link your displays to all of your on-board electronics. Monitor your boat’s engines and fuel efficiency, control your on-board sound system, and much more. Expand your system with Simrad modules and accessories: fish smarter with game-changing StructureScan® 3D imaging, see further with legendary Halo™ Pulse Compression radar, and free your hands from the wheel with a fully integrated Simrad autopilot.


Wireless connectivity to your smartphone or tablet

Mirror your display to compatible iOS and Android devices, and enjoy access to charts, radar, sonar, engine data, and more from anywhere on board. Check charts and weather radar to plot your next move from the saloon, or keep your fish-finding sonar display beside you while you cast your line. Wireless connectivity also enables easy online software upgrades through any internet hotspot, giving you access to the latest features and accessory support.

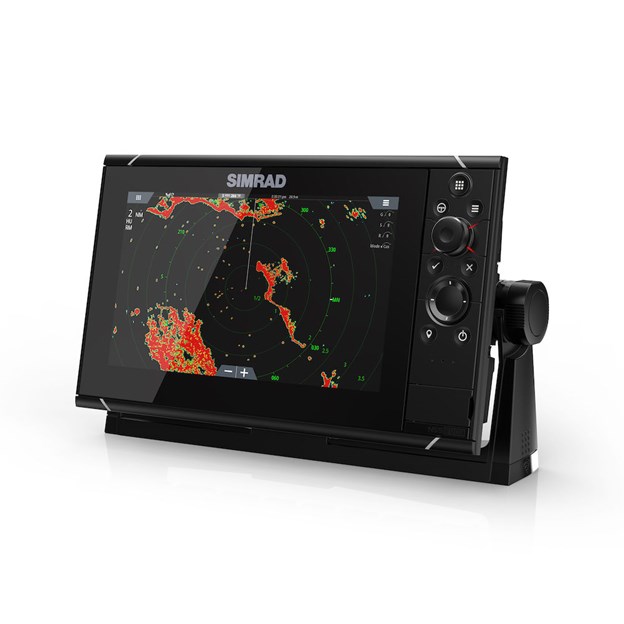

HALO Radar for greater situational awareness

Bring radar capabilities to your boat with this compact and easy-to-install dome radar system. The HALO Radar dome series detects targets from right off the bow and up to 48 nautical miles away. Use HALO to cruise confidently through crowded harbors, navigate safely in poor visibility, and keep an eye on distant storm cells. Our HALO24 and HALO20+ Radar offer an almost real-time view with industry-first 60 RPM operation at close range.


Key Features

  • SolarMAX™ IPS display with ultra-wide viewing angles
  • Switch seamlessly between touchscreen and keypad controls
  • Built-in GPS receiver, sonar support, and wireless connectivity
  • Control Simrad sonar, radar, autopilot, and other accessories
  • Industry-standard connectivity to engines, sound systems, and more
  • Easy trip planning and support for automatic routing
  • Choose low-profile flush mounting or convenient bracket mounting

What's in the box?

  • Power Cable, 4-Pin
  • NSS9 evo3/3S Sun Cover
  • NSS9 evo3/3S, Cruise 9 & Zeus³/3S 9 Gimbal Bracket
  • NSS9 evo3/3S & Zeus³/3S 9 Dash Mount Kit
  • NSS9 evo3/3S & Zeus³/3S 9 Edge Bezels

Specifications

Display
Backlight Color
White
Display Resolution
720 x 1280
Viewing Angles
80° top/bottom, 80° left/right
Physical
Dimensions W x H x D
287 x 166 x 90 mm (11.30 x 6.55 x 3.50")with bracket 311 x 180 x 95 (11.30 x 7.07 x 3.72)
Mounting Type
Bracket (Supplied) or panel mount
Weight
1.41 kg (3.11 lbs.)
Electrical
Power Consumption max
23 W
Recommended Fuse Rating
3A
Supply Voltage
10 - 31.2 V DC
Environment
Operating Temperature Range
-15°C to +55°C (5° F to 131° F)
Storage Temperature Range
-20°C to +60°C (4°F to 140°F)
Waterproofrating
IPX6 and 7

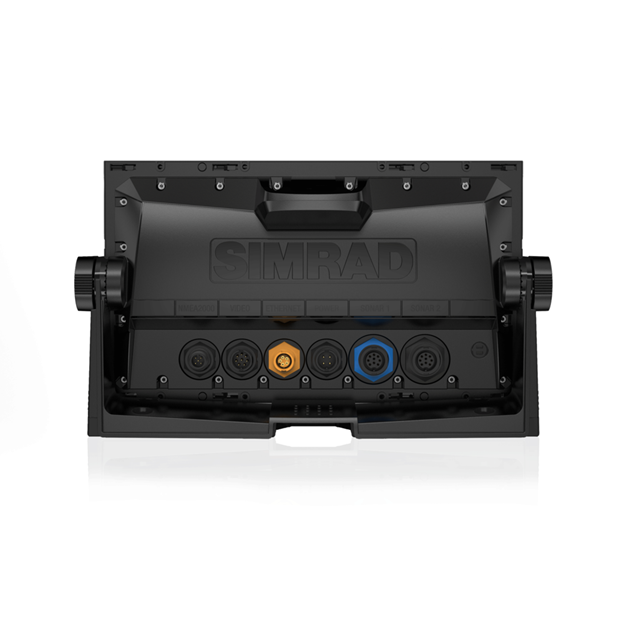

Connectivity
Bluetooth
Internal
Ethernet Ports
1 x 5 pin yellow connector x 10/100 Mbit
Connectivity Wi Fi
Internal
N2K PG Ns
Receive only59392 ISO Acknowledgement59904 ISO Request60160 ISO Transport Protocol, Data Transfer60416 ISO Transport Protocol, Connection M.65240 ISO Commanded Address60928 ISO Address Claim126208 ISO Command Group Function126992 System Time126996 Product Info126998 Configuration Information127233 Man Overboard Notification (MOB)127237 Heading/Track Control127245 Rudder127250 Vessel Heading127251 Rate of Turn127252 Heave127257 Attitude127258 Magnetic Variation127488 Engine Parameters, Rapid Update127489 Engine Parameters, Dynamic127493 Transmission Parameters, Dynamic127500 Load Controller Connection State / Control127501 Binary Status Report127503 AC input status127504 AC Output Status127505 Fluid Level127506 DC Detailed Status127507 Charger Status127508 Battery Status127509 Inverter Status128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129033 Time & Date129038 AIS Class A Position Report129039 AIS Class B Position Report129040 AIS Class B Extended Position Report129041 AIS aids to Navigation129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 AIS Class B Extended Position Report129545 GNSS RAIM Output129549 DGNSS Corrections129551 GNSS Differential Correction Receiver Signal129793 AIS UTC and Date Report129794 AIS aids to Navigation129798 AIS SAR Aircraft Position Report129801 Cross Track Error129802 AIS Safety Related Broadcast Message129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 GNSS Sats in View129794 AIS Class A Static and Voyage Related Data129801 AIS Addressed Safety Related Message129802 AIS Safety Related Broadcast Message129808 DSC Call Information129809 AIS Class B “CS” Static Data Report, Part A129810 AIS Class B “CS” Static Data Report, Part B130060 Label130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130313 Humidity130314 Actual Pressure130316 Temperature, Extended Range130569 Entertainment - Current File and Status130570 Entertainment - Library Data File130571 Entertainment - Library Data Group130572 Entertainment - Library Data Search130573 Entertainment - Supported Source Data130574 Entertainment - Supported Zone Data130576 Small Craft Status130577 Direction Data130578 Vessel Speed Components130579 Entertainment - System Configuration Status130580 Entertainment - System Configuration Status130581 Entertainment - Zone Configuration Status130582 Entertainment - Zone Volume Status130583 Entertainment - Available Audio EQ Presets130584 Entertainment - Bluetooth Devices130585 Entertainment - Bluetooth Source StatusTransmit60160 ISO Transport Protocol, Data Transfer60416 ISO Transport Protocol, Connection M.126208 ISO Command Group Function126992 System Time126993 Heartbeat126996 Product Info127237 Heading/Track Control127250 Vessel Heading127258 Magnetic Variation127502 Switch Bank Control128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129283 Cross Track Error129285 Navigation - Route/WP Information129284 Navigation Data129285 Route/Waypoint Data129539 GNSS DOPs129540 GNSS Sats in View130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130577 Direction Data130578 Vessel Speed Components
NMEA 0183 Sentences supported
Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
NMEA 2000 Connectivity
1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity
No
SD Card Storage
2 Micro SD slots, max. 32GB each. Larger if formatted to NTFS
Video
2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001).
MFD
AIS
Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)
Autopilot
Full auto pilot control and commissioning
Cartography included
World basemap (no detailed charts)
Digital Switching
C-Zone, Naviop
GPS
Internal
Internal Storage
16 GB
Multimedia
via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Sonar Compatibility
Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 kHz, HDI. Sonar port 2: Single channel CHIRP, 50/200 kHz, Active Imaging, TotalScan, LSS HD, ForwardScan. Compatible with: S5100, SonarHub, BSM-3, BSM-2, network echo sounders
Waypoints, Routes, Tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Weather
SiriusXM via WM-4 / WM-3 (USA only), GRIB
GPS
Correction
WASS, MSAS, EGNOS, GLONASS
GPS Receiver Channels
34 Channels
Position Accuracy
Horizontal Accuracy 3 m (9.8 ft)
Time to First Fix
Cold start 50 sec, Satellite Reacquisition 5 sec
Update rate
10 Hz
Autopilot
Manouevres Turn Patterns
U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes
Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Approvals
Approvals Compliance
CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.2
Other
Interface
Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers
Languages
Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishOther languages supported by Unlock:Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic, Farsi
Warranty Period
2 Years
