NSS12 evo2 with Insight charts

SKU: 000-11192-001

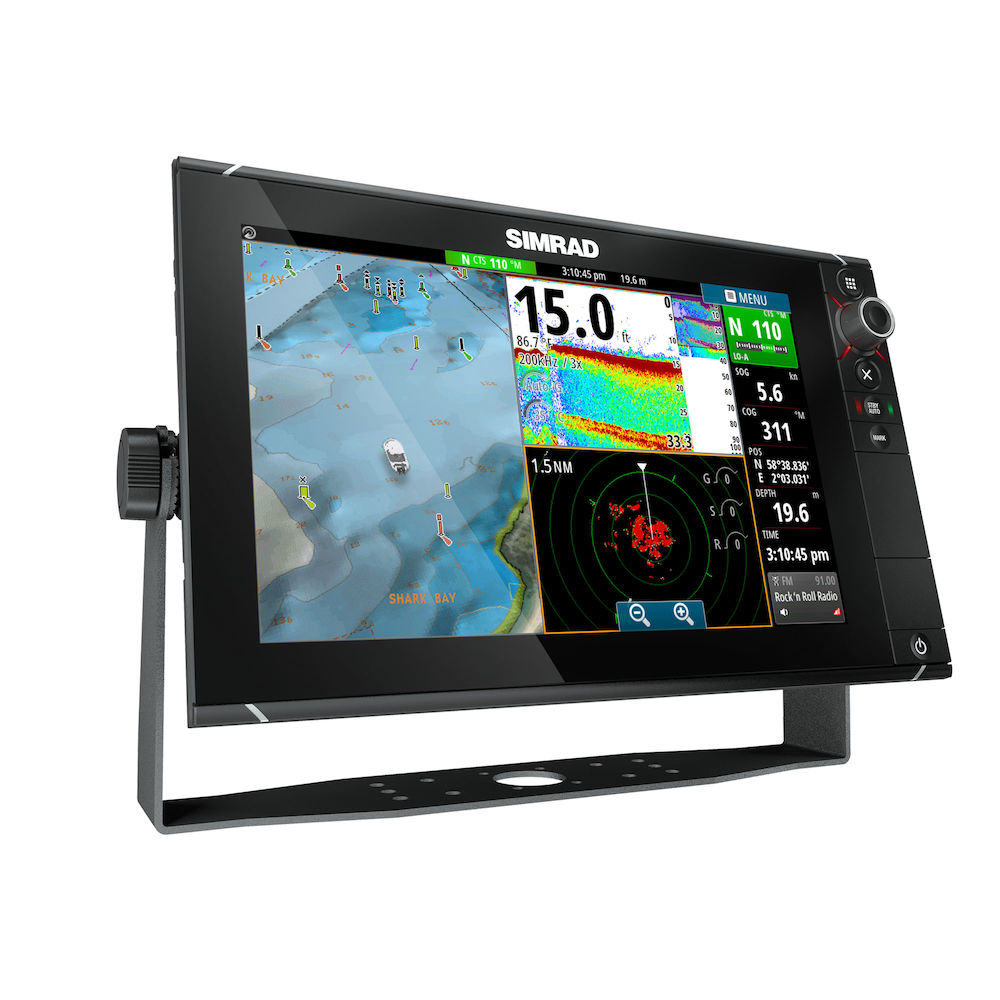

The NSS12 evo2 combines an intuitive 12-inch multifunction display with built-in GPS, StructureScan® HD imaging, and CHIRP sonar. Easy integration means you can share charts, waypoints and more between multiple on-board displays, and expand your system with a wide range of accessories. Includes Insight USA charts.

This product is not currently available to purchase online

Product details

Performance, Functionality, and Control
NSS evo2 has been engineered for performance, functionality, and flexible control. Switch seamlessly between an intuitive touchscreen, and a classic keypad and rotary dial that provide reliable operation in even the roughest conditions. It’s easy to monitor and control all of your on-board electronics with simple menus, and customisable split-screen layouts that provide access to multiple display functions at once. One display delivers a wide range of functionality at the helm, on the flybridge, or anywhere else on board. An HDMI output lets you mirror your NSS evo2 on another display, such as a TV in the saloon.

Full-Featured Chartplotter with a Built-In Sounder
Plot the best course to any destination with a built-in GPS receiver and support for a wide range of charts from Navionics, C-MAP, and others. Plan safer trips using TripIntel™ technology, and leverage automatic routing features to get underway with less delay. An integrated echosounder combines award-winning StructureScan® HD imaging for a 180-degree picture-like view of the bottom, and CHIRP-enabled sonar for reliable fish detection and accurate bottom tracking. Just add your choice of sonar transducer for access to an array of sonar functionality that’s perfect for sportfishing, cruising, diving, and other on-water activities.

Easy, Vessel-Wide Integration and Expansion
Industry-standard connectivity makes it easy to create multi-display systems, and link your displays to all of your on-board electronics. Monitor engines and fuel efficiency, control your on-board sound system, and more. Expand your system with optional accessories: fish smarter with game-changing StructureScan® 3D imaging, see further with revolutionary Halo™ radar, and free your hands from the wheel with a fully integrated Simrad autopilot. NSS evo2 puts control of everything at your fingertips, while allowing you to focus on what’s most important to your current activity.

Minimum product requirements

Built-in echosounder functionality requires a compatible transducer. An external GPS antenna may be required in certain installations that prevent a clear GPS signal from reaching the built-in receiver. Automatic routing features require charts that offer Navionics Dock-to-Dock Autorouting or C-MAP Easy Routing.

Key features

  • 12-inch HD widescreen multi-touch display
  • Switch seamlessly between touchscreen and keypad controls
  • Built-in GPS receiver, StructureScan® HD, and CHIRP sounder
  • Control Simrad sonar, radar, autopilot, and other accessories
  • Industry-standard connectivity to engines, sound systems, and more
  • Easy trip planning and support for automatic routing
  • Choose low-profile flush mounting or convenient bracket mounting
  • Includes Insight USA charts

Touchscreen

10 Hz GPS

CHIRP Sonar

TripIntel

Dual Micro-SD Card Slots

IPX7 Waterproof

2 Year Warranty

Specifications

Storage Temperature Range
"-20°C to +60°C (4°F to 140°F)
NMEA 2000 Connectivity
1 x NMEA 2000 Micro-C port, 1 LEN
Update rate
10 Hz
Screen Brightness
1200 nits
Operating Temperature Range
-15°C to +55°C (5° F to 131° F)
SD Card Storage
2 MicroSD slots, max. 32GB each
Ethernet Ports
2 x 5 pin yellow connector x 1 Mbit, max 6 processors on network
Video
2 x composite (RCA connectors) inputs. Optional video/ data cable required (P/N 000-00129-001). PAL or NTSC.HDMI output. (output is fixed at 800x1200)
Warranty Period
2 Years
Weight
3.264 kg (7.2 lbs.)
Power Consumption max
30W
GPS Receiver Channels
32 Channels
Dimensions H x W x D
345 x 215 x 106 mm (13.5 x 8.5 x 4.2")
Recommended Fuse Rating
5A
Waypoints, Routes, Tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Display Resolution
800 x 1280 WXGA, 16:10
Viewing Angles
88° top / bottom, 88° left/right
Supply Voltage
9 - 31.2 V DC
Internal Storage
90 MB
Steering Modes
Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Digital Switching
BEP C-Zone
Mounting Type
Bracket (Supplied) , panel, flush
Radar compatibility
Broadband Radar, Halo Pulse Compression Radar, HD Pulse
Approvals Compliance
CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Time to First Fix
Cold start 50 sec, Satellite Reacquisition 5 sec
Item Connectivity WiFi
Compatible with WIFI-1 external module
Autopilot
Full auto pilot control and commissioning
Position Accuracy
Horizontal Accuracy 3 m (9.8 ft)
NMEA 0183 Sentences supported
Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Charts supported
Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+)
Sonar Compatibility
Integrated CHIRP downscan and StructureScan/ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, BSM1 network echo sounders
GPS
Internal, 10Hz, WASS, MSAS, EGNOS
Waterproofrating
IPX6 and 7
PC Connectivity
No
Bluetooth
No
AIS
Receive AIS data over NMEA 2000 or *NMEA 0183 (has to be wired to all NSS processors)
N2K PGNs
Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
Weather
SiriusXM via WM-3 (USA only), GRIB
Languages
Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
Interface
Touch Sensible combination of multi-touch screen and keypad/rotary, OP40, OP50
Manouevres Turn Patterns
U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Multimedia
via SonicHub, SonicHub2, FusionLink, *Sirius (*USA only)
Correction
WASS, EGNOS, MSAS
Backlight Color
White
Catography included
World base map
