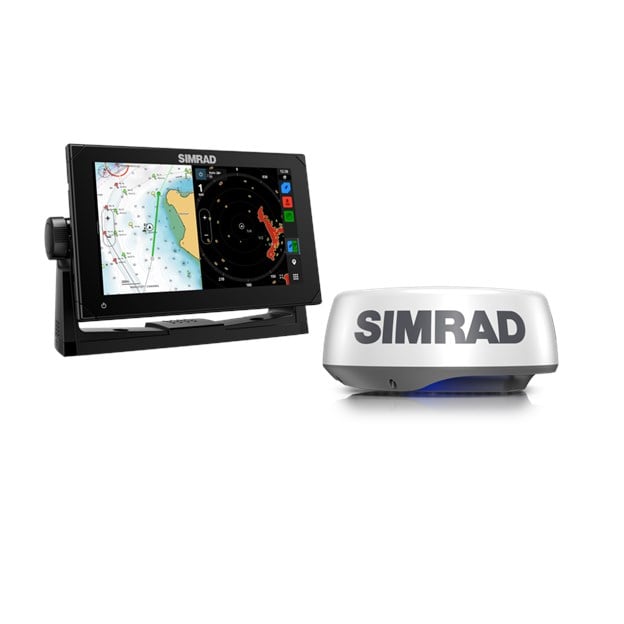

NSX® 3009 with Active Imaging™ and HALO20+ Radar

SKU: 000-15377-001

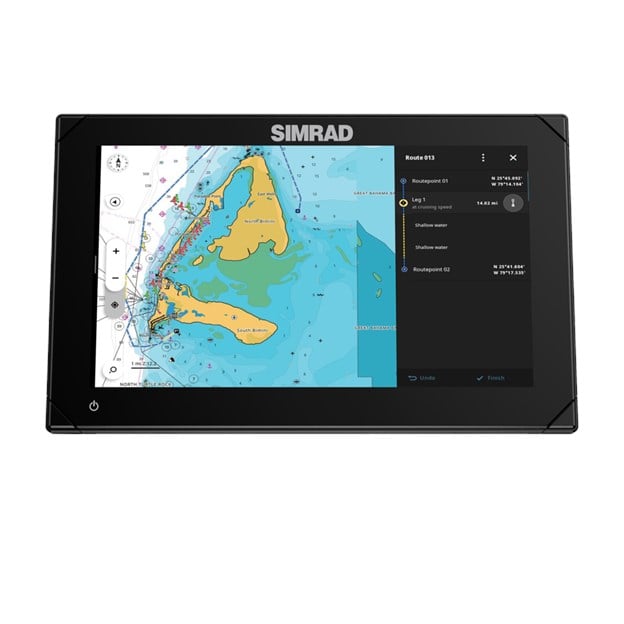

The future is here with NSX^®. Experience the simplicity of our latest operating system, introducing a redesigned charting experience, our fastest-ever auto-routing, and seamless integration for total control of your boat. NSX comes fully-equipped with integrations for Sonar, Radar, and Autopilot Systems.

Crafted specifically for fluidity and ease of use, with NSX you'll spend less time on the screen, and more time on your next adventure. 

Save $350

View Key Features View Specifications

Screen Size Options What's this:

7" 9" 12"

Map Options What's this:

C-MAP® DISCOVER™ X

Transducer Options What's this:

None Active Imaging™ 3-in-1 HDI Transducer

Radar Options What's this:

None HALO20+

$3,599

Find a dealer

Unlock the full Simrad suite

NSX integrates seamlessly with the full suite of Simrad electronics, giving you full visibility and control across your entire boat. Get enhanced safety with our latest HALO^® radars, up your fishing game with our new S3100 sonar module, or take a break from the helm with Simrad Autopilot.

Embrace sonar sharing*

Take your fishing game to the next level with sonar sharing. Add another NSX display to your angling arsenal to double-up and monitor your sonar feeds from anywhere on-board.

Enhanced third-party integration

Enhanced third-party integration means the fluid experience extends beyond the world of Simrad. Feel more in control with full support for Mercury^® engines, including cruise control, active trim, and VesselView^®, with Mercury SmartCraft^® Connect, unlocking autopilot features and a split screen interface.

Complete your set-up with support for OmniSense cameras, Dometic climate control systems, and LED lighting from Lumishore.

Choose your own charts

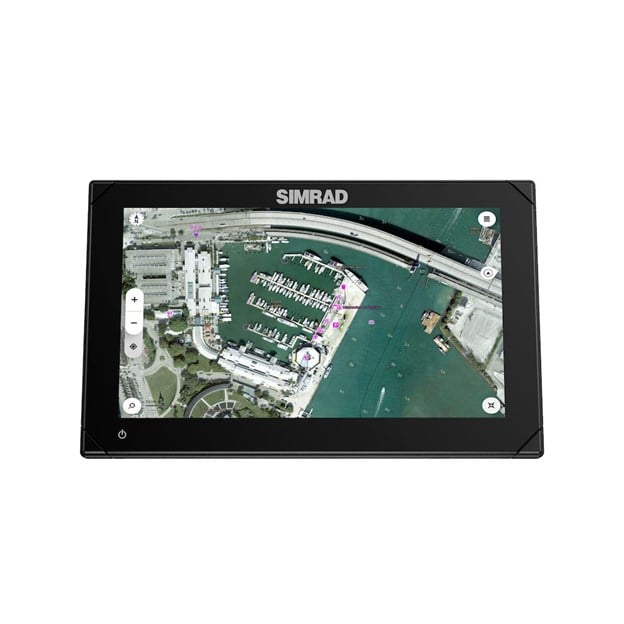

For total flexibility, NSX is now compatible with a range of third-party chart providers, including CMOR Mapping, and plenty more to come...*

*Florida Marine Tracks, Standard Mapping, StrikeLines, and others in development for 2023

Big screen, small footprint

NSX delivers more screen size for the overall footprint of your product, so you can see more and take up less space in your cockpit.

That’s why NSX is the perfect choice for any mid-sized center console, dayboat, or other leisure-activity powerboat.

Functionality in all conditions

Even the touchscreen on NSX is built for adventure. With SolarMAX IPS technology, you can view the display at any angle, in direct sunlight, and with polarized sunglasses.

Connect the Simrad^® App

Take your boating adventures home with you, using the Simrad Companion App. By pairing your smartphone with your NSX, you can pre-plan trips, review tracks, plot Waypoints, and sync directly to your device.

Key Features

Sonar sharing
Full Mercury Integration, inc. SmartCraft^® Connect and VesselView^®
SolarMAX^™ IPS HD touchscreen with extreme viewing angles

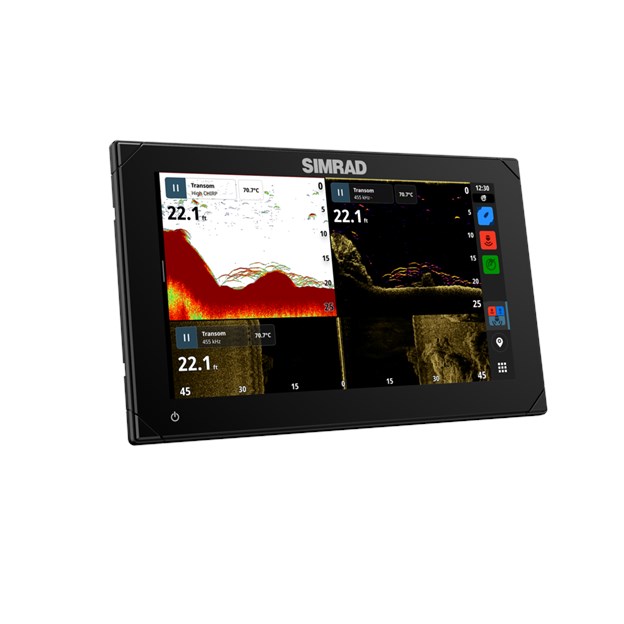

Compatible with Active Imaging^™, featuring CHIRP, SideScan, and DownScan Imaging^™
Compatible with C-MAP^® DISCOVER™ X AND REVEAL^™ X charts
Support for additional charting, such as CMOR, Florida Marine Tracks, Strike Lines and Standard Mapping *US Only*

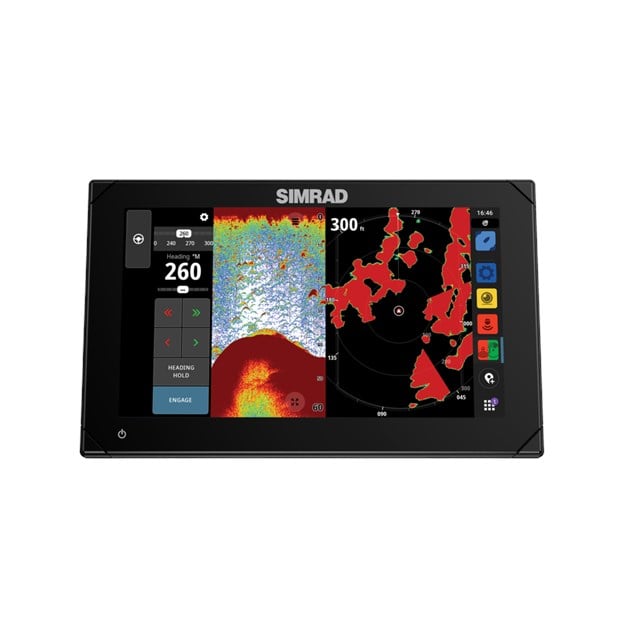

See near and far with full HALO^® radar support

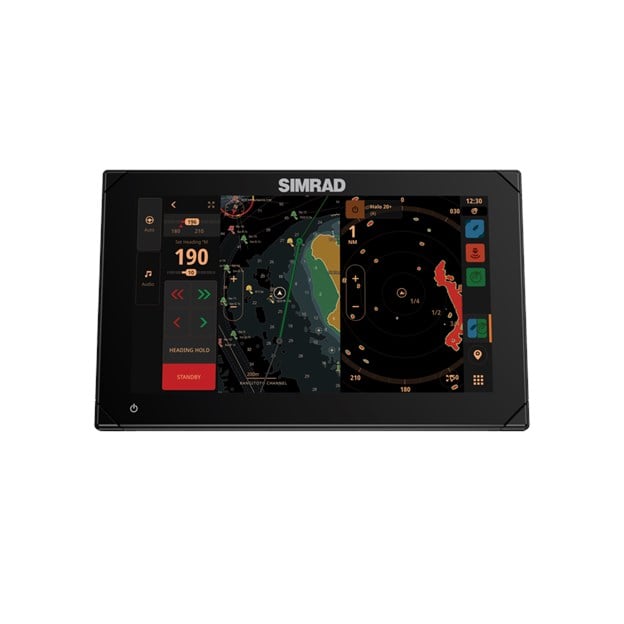

Easy autopilot integration
Excellent third-party integration, inc. CZone^®, OmniSense, Dometic, Lumishore and more...
Simrad^® App integration

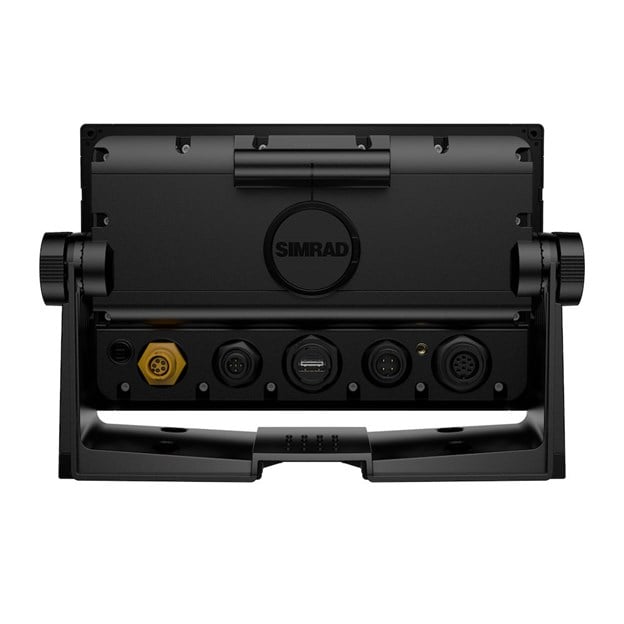

Wireless connectivity, plus full Ethernet, USB, and NMEA 2000^® networking capability
IP Camera video support

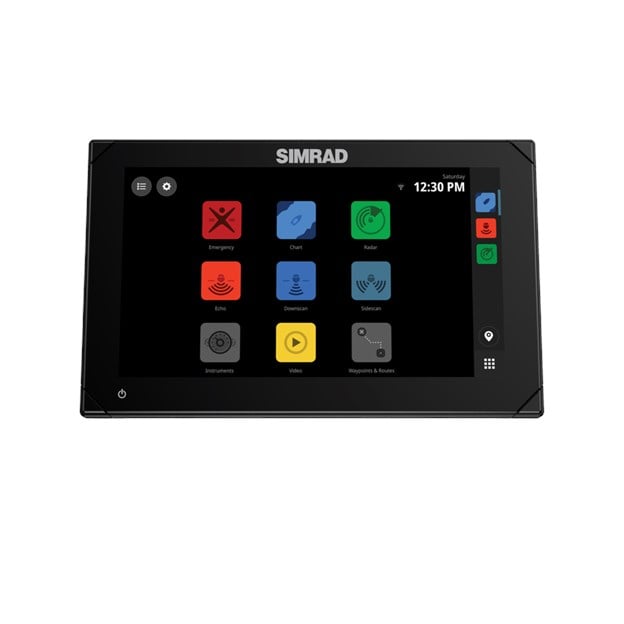

Setup Wizard to get you up and running quickly
Now compatible with SiriusXM® WM-4 Weather and Fish Mapping with 1.9 software update

HALO24,UNBRANDED DOME

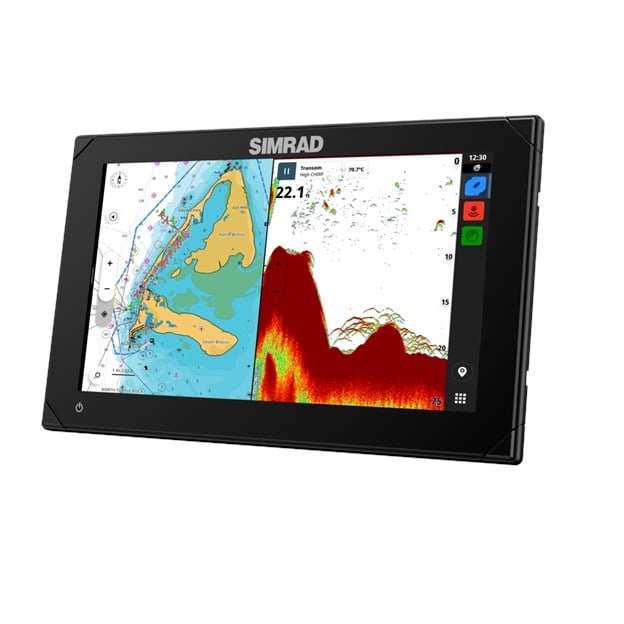

NSX® 3009 with Active Imaging™

Specifications

Display
Backlight Color: White
Display Resolution: 1280 x 720 px
Display Size: 9 inches
Screen Brightness: >1200 nits
Viewing Angles: 85° (top, bottom, left, and right)
Physical
Compass Safe: 50 cm (1.7 ft)
Dimensions W x H x D: With bracket: W: 263.0 mm (10.35") x H: 172.6 mm (6.80") x D: 80.6 mm (3.17")No bracket, no suncover: W: 239.0 mm (9.40") x H: 148.5 mm (5.85") x D: 80.6 mm (3.17")No bracket, with suncover: W: 243.7 mm (9.59") x H: 153.4 mm (6.03") x D: 85.6 mm (3.37")
Mounting Type: Bracket (supplied), panel mount or flush mount
Weight: 1.2 kg (2.6 lbs)
Electrical
Power Consumption max: 18.8 W (1360 mA at 13.8 V)
Recommended Fuse Rating: 3A
Supply Voltage: 12 V DC (10 - 17 V DC min - max)
Environment
Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
Shock Vibration: 100,000 cycles of 20 G
Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
Waterproofrating: IPx6 and IPx7
Connectivity
Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic
Ethernet Ports: 1 port (5-pin connector)
Connectivity Wi Fi: IEEE 802.11b/g/n
N2K PG Ns: Receive only59392 ISO Acknowledgement59904 ISO Request60160 ISO Transport Protocol, Data Transfer60416 ISO Transport Protocol, Connection M.65240 ISO Commanded Address60928 ISO Address Claim126208 ISO Command Group Function126992 System Time126996 Product Info126998 Configuration Information127233 Man Overboard Notification (MOB)127237 Heading/Track Control127245 Rudder127250 Vessel Heading127251 Rate of Turn127252 Heave127257 Attitude127258 Magnetic Variation127488 Engine Parameters, Rapid Update127489 Engine Parameters, Dynamic127493 Transmission Parameters, Dynamic127500 Load Controller Connection State / Control127501 Binary Status Report127503 AC input status127504 AC Output Status127505 Fluid Level127506 DC Detailed Status127507 Charger Status127508 Battery Status127509 Inverter Status128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129033 Time & Date129038 AIS Class A Position Report129039 AIS Class B Position Report129040 AIS Class B Extended Position Report129041 AIS aids to Navigation129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 AIS Class B Extended Position Report129545 GNSS RAIM Output129549 DGNSS Corrections129551 GNSS Differential Correction Receiver Signal129793 AIS UTC and Date Report129794 AIS aids to Navigation129798 AIS SAR Aircraft Position Report129801 Cross Track Error129802 AIS Safety Related Broadcast Message129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 GNSS Sats in View129794 AIS Class A Static and Voyage Related Data129801 AIS Addressed Safety Related Message129802 AIS Safety Related Broadcast Message129808 DSC Call Information129809 AIS Class B “CS” Static Data Report, Part A129810 AIS Class B “CS” Static Data Report, Part B130060 Label130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130313 Humidity130314 Actual Pressure130316 Temperature, Extended Range130569 Entertainment - Current File and Status130570 Entertainment - Library Data File130571 Entertainment - Library Data Group130572 Entertainment - Library Data Search130573 Entertainment - Supported Source Data130574 Entertainment - Supported Zone Data130576 Small Craft Status130577 Direction Data130578 Vessel Speed Components130579 Entertainment - System Configuration Status130580 Entertainment - System Configuration Status130581 Entertainment - Zone Configuration Status130582 Entertainment - Zone Volume Status130583 Entertainment - Available Audio EQ Presets130584 Entertainment - Bluetooth Devices130585 Entertainment - Bluetooth Source StatusTransmit60160 ISO Transport Protocol, Data Transfer60416 ISO Transport Protocol, Connection M.126208 ISO Command Group Function126992 System Time126993 Heartbeat126996 Product Info127237 Heading/Track Control127250 Vessel Heading127258 Magnetic Variation127502 Switch Bank Control128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129283 Cross Track Error129285 Navigation - Route/WP Information129284 Navigation Data129285 Route/Waypoint Data129539 GNSS DOPs129540 GNSS Sats in View130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130577 Direction Data130578 Vessel Speed Components
NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity: No
SD Card Storage: 1 MicroSD slot, USB port for external drive
Video: Ip Camera support
MFD
AIS: Receive AIS data over NMEA 2000
Cartography included: Discover X chart card of North America
Digital Switching: Czone / Simrad DDS
GPS: Internal, 10Hz
Sonar Compatibility: One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging
Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points.
Weather: No
GPS
Correction: 10 Hz high speed update (internal)WASS, MSAS, EGNOS, GLONASS
GPS Receiver Channels: 32 Channels
Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
Update rate: 10Hz
Other
Interface: Multi-touch screen
Languages: -German (Deutsch)-English (English)-Dutch (Nederlands)-Danish (Dansk)-Spanish (Español)-French (Français)-Italian (Italiano)-Norwegian (Norsk)-Portuguese (Português)-Finnish (Suomi )-Swedish (Svenska)-Icelandic (Islenska)-Greek (ελληνικά)-Chinese (中文)-Turkish (Türkçe)-Estonian (Eesti)-Croatian (Hrvatski)-Lithuanian (Lietuvių)-Latvian (Latviešu )-Polish (Polski)-Chinese Simplified (中文)-Japanese (日本語)-Korean (한국어)-Ukrainian
Warranty Period: 2 Years
