NSX 3015UW with Active Imaging™ 3-in-1

SKU: 000-16213-001

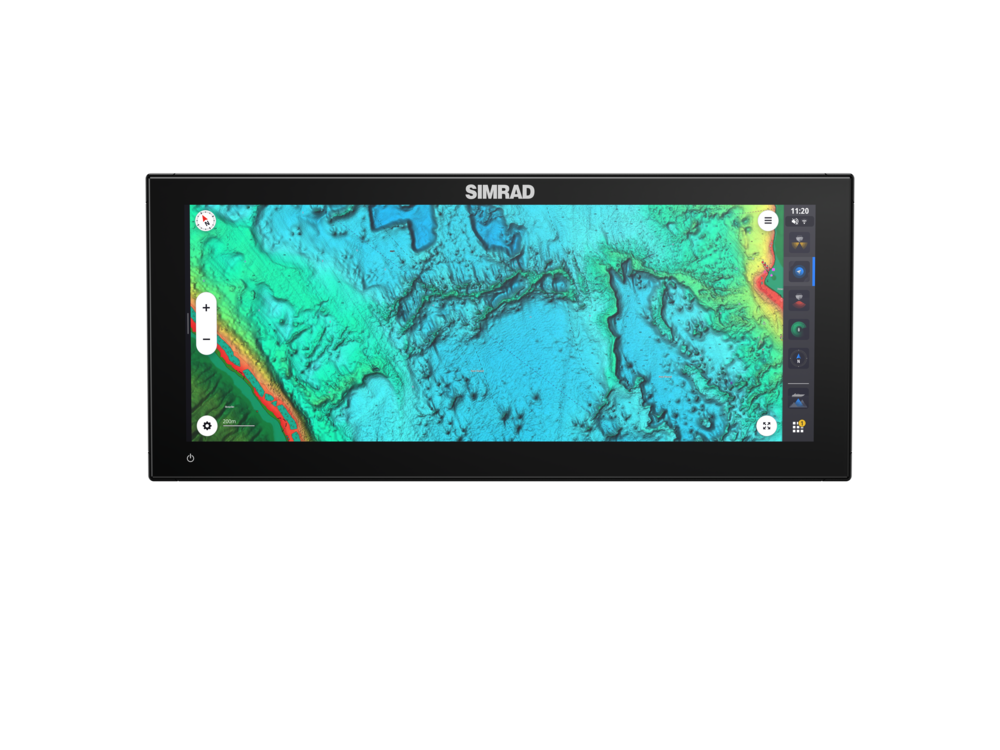

Expand your horizons with the world's first fully-featured ultrawide marine display. NSX® ULTRAWIDE brings all the benefits of dual screens to a single display for our most immersive experience yet. Get a truly unique, eye-catching dash, see apps as they were meant to be seen, and experience C-MAP®'s X-Gen charts in more detail than ever.

Welcome to the future of marine displays. Why settle for anything less?

NEW
x

The available screen sizes for the NSX ULTRAWIDE range

x

Mapping options for NSX ULTRAWIDE

x

Choose a transducer for your NSX ULTRAWIDE

$3,549

Get a fresh perspective

NSX ULTRAWIDE offers a new perspective on boating. Discover an all-new aspect ratio for our most immersive on-the-water experience yet.

Simpler boating with our latest operating system

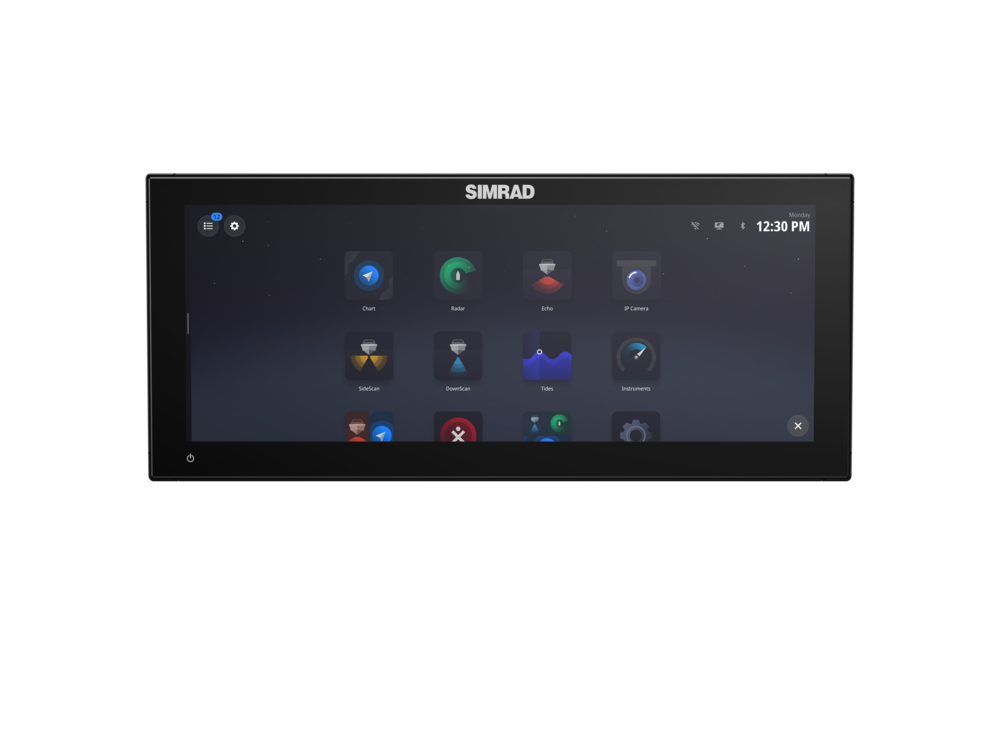

NSX ULTRAWIDE also delivers game-changing simplicity. Use the intuitive activities bar to pin your favorite apps and switch between them with a single touch. And the fully customizable instruments panel lets you make NSX your own, ensuring you always have the right data at hand, and nothing more.

The simplified interface means you’ll spend less time navigating menus, and more time navigating waters. And that’s quicker, too – with our fastest-ever auto-routing calculating routes in one third of the time.


Superior engine control

Connectivity is at the heart of NSX ULTRAWIDE. The display feeds more information than ever to the helm, giving superior control over the full suite of on-board technology.

It all begins with superior engine control. Nobody integrates better with Mercury® than we do, and NSX ULTRAWIDE also offers superior integration with other leading propulsion brands such as Honda and Suzuki.

Mask Group 8.jpg

Bow-to-stern integration

Control with NSX ULTRAWIDE extends across the entire vessel, with support for CZone® digital switching, RGBW lighting, IP cameras and audio – with an intuitive Setup Wizard to help you get it all connected.

Your fishing superpower

Anglers benefit from leading sonar tech like FishReveal™ and Active Imaging®, providing high-res images 300 feet to the sides and below your boat. And compatibility with a wide range of 1kW transducers means you can fish even the deepest waters.

*Requires additional sonar module and minimum 1.7 software update


Your fishing superpower

Anglers benefit from leading sonar tech like FishReveal™ and Active Imaging®, providing high-res images 300 feet to the sides and below your boat. And compatibility with a wide range of 1kW transducers means you can fish even the deepest waters.

*Requires additional sonar module and minimum 1.7 software update


Your fishing superpower

Anglers benefit from leading sonar tech like FishReveal™ and Active Imaging®, providing high-res images 300 feet to the sides and below your boat. And compatibility with a wide range of 1kW transducers means you can fish even the deepest waters.

*Requires additional sonar module and minimum 1.7 software update

Key Features

Simrad® suite integration

  • See near and far with full support for 3G, 4G and HALO® radars
  • Easy autopilot integration with NAC-1, NAC-2, NAC-3 and NAC-D pilots
  • Simrad® App integration for Waypoint management and offline trip planning

Third-party integration

  • Now compatible with SiriusXM® WM-4 Weather and Fish Mapping with 1.9 software update
  • Best-in-class Mercury® Integration, inc. SmartCraft® Connect
  • Integration with leading propulsion brands such as Honda and Suzuki
  • CZone® digital switching
  • OmniSense
  • Dometic
  • Lumishore lighting
  • Multiple audio partners
  • IP cameras
  • HTML5 app compatible
  • Much, much more...

Charts and Navigation

  • Optimized for C-MAP® DISCOVER™ X AND REVEAL™ X charts
  • X-Chart Manager
  • 3x faster autorouting*

*vs SIMRAD® GO

Fishfinding & Sonar Capabilities

  • Sonar sharing between NSX® devices
  • Compatible with Active Imaging™, featuring CHIRP, SideScan, and DownScan Imaging™, as well as the S5100 sonar module*

*Requires minimum 1.7 software update

Network Connectivity

  • Wireless
  • Ethernet
  • USB
  • NMEA 2000®

Additional Features

  • The latest Simrad® operating system, for game-changing ease of use
  • Ultrawide SolarMAX™ IPS HD touchscreen with extreme viewing angles
  • Intuitive setup wizard
  • Bracket mount sold separately

What's in the box?

  • NSX 3015UW REAR MOUNT KIT
  • Suncover for Simrad® NSX® ULTRAWIDE 3015
  • Rear Mount Kit for NSX® ULTRAWIDE 3015

Specifications

Display
Backlight Color
White
Display Resolution
1920 x 720 px
Screen Brightness
>1000 nits
Viewing Angles
85° (top, bottom, left, and right)
Physical
Compass Safe
50 cm (1.7 ft)
Dimensions W x H x D
No Bracket, no suncover W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48"). With gimbal bracket H: 180.4 mm (7.10") D:96.5 mm (3.80")
Mounting Type
Rear mount (bracket supplied), Bracket mount (bracket optional)
Weight
1.9 kg (4.2 lbs)
Electrical
Power Consumption max
25 W (1811 mA at 13.8 V)
Recommended Fuse Rating
3A
Supply Voltage
12 V DC (10 - 17 V DC min - max)
Environment
Humidity
IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Operating Temperature Range
-15°C to 55°C (5°F to 131°F)
Shock Vibration
100,000 cycles of 20 G
Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)
Waterproofrating
IPx6 and IPx7
Connectivity
Bluetooth
Bluetooth 4.0 with support for Bluetooth Classic
Ethernet Ports
1 port (5-pin connector)
Connectivity Wi Fi
IEEE 802.11b/g/n
N2K PG Ns
NMEA 2000 PGN supported: Receive only-59392 ISO Acknowledgement-59904 ISO Request-60160 ISO Transport Protocol, Data Transfer-60416 ISO Transport Protocol, Connection M.-65240 ISO Commanded Address-60928 ISO Address Claim-126208 ISO Command Group Function-126992 System Time-126996 Product Info-126998 Configuration Information-127233 Man Overboard Notification (MOB)-127237 Heading/Track Control-127245 Rudder-127250 Vessel Heading-127251 Rate of Turn-127252 Heave-127257 Attitude-127258 Magnetic Variation-127488 Engine Parameters, Rapid Update-127489 Engine Parameters, Dynamic-127493 Transmission Parameters, Dynamic-127500 Load Controller Connection State / Control-127501 Binary Status Report-127503 AC input status-127504 AC Output Status-127505 Fluid Level-127506 DC Detailed Status-127507 Charger Status-127508 Battery Status-127509 Inverter Status-128259 Speed, Water referenced-128267 Water Depth-128275 Distance Log-129025 Position, Rapid Update-129026 COG & SOG, Rapid Update-129029 GNSS Position Data-129033 Time & Date-129038 AIS Class A Position Report-129039 AIS Class B Position Report-129040 AIS Class B Extended Position Report-129041 AIS aids to Navigation-129283 Cross Track Error-129284 Navigation Data-129539 GNSS DOPs-129540 AIS Class B Extended Position Report-129545 GNSS RAIM Output-129549 DGNSS Corrections-129551 GNSS Differential Correction Receiver Signal-129793 AIS UTC and Date Report-129794 AIS aids to Navigation-129798 AIS SAR Aircraft Position Report-129801 Cross Track Error-129802 AIS Safety Related Broadcast Message-129283 Cross Track Error-129284 Navigation Data-129539 GNSS DOPs-129540 GNSS Sats in View-129794 AIS Class A Static and Voyage Related Data-129801 AIS Addressed Safety Related Message-129802 AIS Safety Related Broadcast Message-129808 DSC Call Information-129809 AIS Class B “CS” Static Data Report, Part A-129810 AIS Class B “CS” Static Data Report, Part B-130060 Label-130074 Route and WP Service - WP List - WP Name & Position-130306 Wind Data-130310 Environmental Parameters-130311 Environmental Parameters-130312 Temperature-130313 Humidity-130314 Actual Pressure-130316 Temperature, Extended Range-130569 Entertainment - Current File and Status-130570 Entertainment - Library Data File-130571 Entertainment - Library Data Group-130572 Entertainment - Library Data Search-130573 Entertainment - Supported Source Data-130574 Entertainment - Supported Zone Data-130576 Small Craft Status-130577 Direction Data-130578 Vessel Speed Components-130579 Entertainment - System Configuration Status-130580 Entertainment - System Configuration Status-130581 Entertainment - Zone Configuration Status-130582 Entertainment - Zone Volume Status-130583 Entertainment - Available Audio EQ Presets-130584 Entertainment - Bluetooth Devices-130585 Entertainment - Bluetooth Source StatusTransmit-60160 ISO Transport Protocol, Data Transfer-60416 ISO Transport Protocol, Connection M.-126208 ISO Command Group Function-126992 System Time-126993 Heartbeat-126996 Product Info-127237 Heading/Track Control-127250 Vessel Heading-127258 Magnetic Variation-127502 Switch Bank Control-128259 Speed, Water referenced-128267 Water Depth-128275 Distance Log-129025 Position, Rapid Update-129026 COG & SOG, Rapid Update-129029 GNSS Position Data-129283 Cross Track Error-129285 Navigation - Route/WP Information-129284 Navigation Data-129285 Route/Waypoint Data-129539 GNSS DOPs-129540 GNSS Sats in View-130074 Route and WP Service - WP List - WP Name & Position-130306 Wind Data-130310 Environmental Parameters-130311 Environmental Parameters-130312 Temperature-130577 Direction Data-130578 Vessel Speed Components"
NMEA 2000 Connectivity
1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity
No
SD Card Storage
1 MicroSD slot, 1 x USB (A)
Video
IP Camera support
MFD
AIS
Receive AIS data over NMEA 2000
Autopilot
NAC-1, NAC-2, NAC3, NAC-D compatible
Cartography included
Discover X chart card of North America
Digital Switching
Czone / DDS
GPS
Internal, 10Hz
Sonar Compatibility
One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging
Waypoints, Routes, Tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points.
Weather
No
GPS
Correction
10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS
GPS Receiver Channels
32 Channels
Position Accuracy
Horizontal Accuracy 3 m (9.8 ft)
Update rate
10 Hz high speed update (internal)WASS, MSAS, EGNOS, GLONASS
Cartography
Charts Supported
C-MAP Tile (CMT) Discover X, C-MAP Tile (CMT) Reveal X
Other
Interface
Multi-touch screen
Languages
-German (Deutsch)-English (English)-Dutch (Nederlands)-Danish (Dansk)-Spanish (Español)-French (Français)-Italian (Italiano)-Norwegian (Norsk)-Portuguese (Português)-Finnish (Suomi )-Swedish (Svenska)-Icelandic (Islenska)-Greek (ελληνικά)-Chinese (中文)-Turkish (Türkçe)-Estonian (Eesti)-Croatian (Hrvatski)-Lithuanian (Lietuvių)-Latvian (Latviešu )-Polish (Polski)-Chinese Simplified (中文)-Japanese (日本語)-Korean (한국어)-Ukrainian
Warranty Period
2 Years
